Interior Sistema T – TDUNR/L

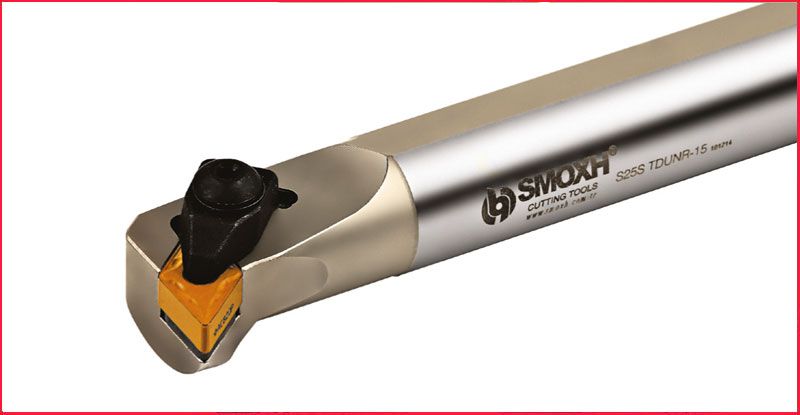

Soporte Torneado Interior Sistema T – TDUNR/L



















S25S TDUNR/L-11 – S32T TDUNR/L-11 Placa DNM 1104
S25S TDUNR/L-15 – S32T TDUNR/L-15 – S40U TDUNR/L-15 – S50V TDUNR/L-15 Placa DNM 1506





S25S TDUNR/L-11 – S32T TDUNR/L-11 Brida TSK2
S25S TDUNR/L-15 – S32T TDUNR/L-15 – S40U TDUNR/L-15 – S50V TDUNR/L-15 Brida TSK1





S25S TDUNR/L-11 – S32T TDUNR/L-11 Tornillo TSBV M5x23
SS25S TDUNR/L-15 – S32T TDUNR/L-15 – S40U TDUNR/L-15 – S50V TDUNR/L-15 Tornillo TSBV M6x30





S25S TDUNR/L-11 – S32T TDUNR/L-11 Placa Base Bax DN11
S25S TDUNR/L-15 – S32T TDUNR/L-15 – S40U TDUNR/L-15 – S50V TDUNR/L-15 Placa  Base Bax DN15





Tornillo TSAV M4x10







 Arandela TSP 6.5X12







Llave AA3
